Ground Support Equipment for Payload Metrology

Description & Features

Custom Reference Optics for Collimators and Beam Transport. AOS Reference Optics are designed for use in ambient laboratory or TVAC environments. Products include large aperture Collimators, reference mirrors and kits to convert horizontal metrology systems for upward or downward vertical testing.

We understand the critical importance of precision and reliability when testing payloads in upward or downward orientations. Our GSE Metrology Mirrors, available in sizes up to 18 to 30 inches, are expertly designed to enable vertical test conversion of collimators and interferometers. These mirrors are not only adaptable for various applications, including ambient laboratory and Thermal Vacuum Chamber (TVAC) environments, but they also exemplify our commitment to innovative solutions tailored to meet the diverse needs of our clients. We invite engineers and project managers in the aerospace and defense sectors to explore how our metrology mirrors can elevate your testing processes, backed by AOS’s dedication to exceptional customer service and support. Together, we can achieve remarkable outcomes in your projects.

Specifications

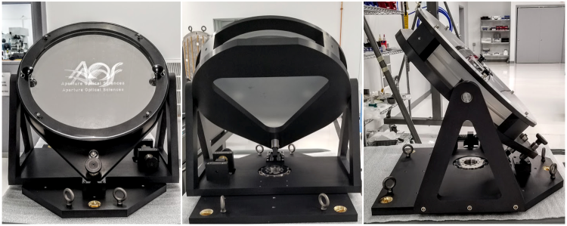

 45 Degree Mirror Systems for vertical payload testing

Precision Optical Mirror

• Fused Silica or Zerodur Reference Mirror
• Protected Aluminum Coating
• λ/10 or λ/20 Flatness45 degree upward looking mount with tip and rotation manual control
• Anodized Aluminum construction with stainless steel & brass actuators
• Hardened steel contact pads
• Universal interface slots in base
• Orthogonal tip / rotation control
• User’s guide
• Step file and user’s license
• Installation assistance as needed
• Ambient Mirror Assembly shown
• TVAC Mirror Assembly Available

Vacuum Compatible High Accuracy Mirrors and Beam Expanders
